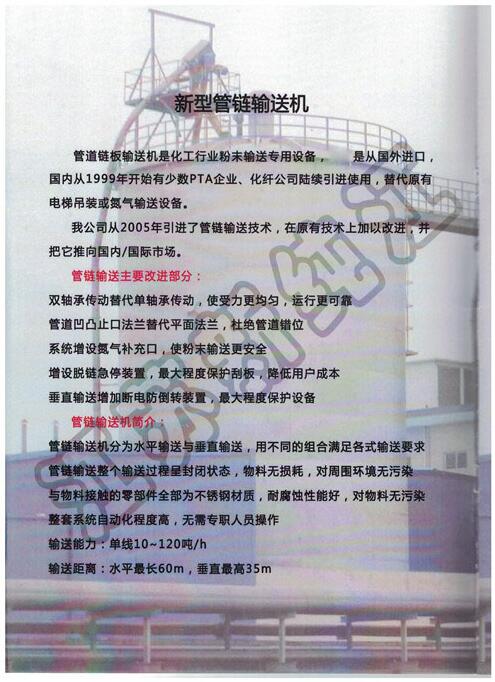

Pipe chain conveyors are professional equipments for chemical powder delivering,and before all imported from foreign

countries,only few enterprises of PTA and chemical fibre in China started importing and using in their factories

since 1999,and replacing the old lifting and nitrogen delivery equipments.

Our company imported this technology in 2005,improved and sold in the domestic and abroad markets.

Main improvement parts:

Double bering drive instead of single bering drive,more uniform force,and more reliable operation; Pipe bumps

stopper flange instead of flat flange,preventing the dislocation of the pipelines;The system added nitrogen filling

port,so the powders delivery more safe. Added the chain lift emergency stop device,maximizing the protection of

scrapers,reducing the cost of users; Vertical transmission to increase the power reversing devices,to maximize

the protection of equipments.

Introductions of pipe chain conveyors:

Pipe chain conveyors can be honrizontal conveying and vertical conveying,with different combinations to meet

the various types of delivery requirments. The full delivery process is closing state,withour maerials lost,the

entire environment without polltions. All parts with materials are stainless steel made,good corrosion resistance,

and no materials pollutions. The whole system with high degree of automation,no need full-time staffs to operate.

Conveying capacity: single line 10-120t/h;

Conveying distance: the horizontal level up to 60m,the vertical up to 35m.

left up: inspection window
